Welded Steel Grating

Welded steel grating is the most popular type among all types of steel grating, also called metal open bar grating. It is also the most widely used type.

Welded steel grating is produced through automatically resistance welded. The bearing bars and cross bars are resistance welded under high heat and pressure to form a permanent joint. This technology can not only ensure the rugged structure of welded steel grating, but also can retain a smooth and flat surface, which is easy and free to walk.

Welded steel grating can be made of various materials, such as carbon steel bars, aluminum steel bars and stainless steel bars.

The bearing bar has two different types according to the surface: smooth bearing bar and serrated bearing bar. Smooth surface steel grating, also called plain steel grating, is more popular than the serrated surface steel grating. But the serrated steel grating have better skid resistance property than the smooth surface.

A galvanized welded steel grating with smooth surface.
Smooth surface welded steel grating.A galvanized welded steel grating with serrated surface.
Serrated surface welded steel grating.
Specification

Material: carbon steel and stainless steel.
Surface treatment: galvanized, mill finished, painted, powder coated, etc.
Surface type: standard plain surface, serrated surface.
Bearing bar type: plain bearing bar and serrated bearing bar.
Standard width: 2′, 3′ and 4′.
Specifications of W-19 Welded Steel Grating
Item Bar Size (D × W) Bearing Bar Spacing Cross Bar Spacing
RSGW19-01 3/4″ × 1/8″ 1-3/16″ 4″
RSGW19-02 1″ × 1/8″ 1-3/16″ 2″/ 4″
RSGW19-03 1-1/4″ × 1/8″ 1-3/16″ 2″/ 4″
RSGW19-04 1-1/2″ × 1/8″ 1-3/16″ 2″/ 4″
RSGW19-05 3/4″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-06 1″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-07 1-1/4″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-08 1-1/2″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-09 1-3/4″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-10 2″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-11 2-1/4″ × 3/16″ 1-3/16″ 2″/ 4″
RSGW19-12 2-1/2″ × 3/16″ 1-3/16″ 2″/ 4″
Specifications of W-15 Welded Steel Grating
Item Bar Size (D × W) Bearing Bar Spacing Cross Bar Spacing
RSGW15-01 3/4″ × 1/8″ 15/16″ 4″
RSGW15-02 1″ × 1/8″ 15/16″ 2″/ 4″
RSGW15-03 1-1/4″ × 1/8″ 15/16″ 2″/ 4″
RSGW15-04 1-1/2″ × 1/8″ 15/16″ 2″/ 4″
RSGW15-05 3/4″ × 3/16″ 15/16″ 4″
RSGW15-06 1″ × 3/16″ 15/16″ 2″/ 4″
RSGW15-07 1-1/4″ × 3/16″ 15/16″ 2″/ 4″
RSGW15-08 1-1/2″ × 3/16″ 15/16″ 2″/ 4″
RSGW15-09 1-3/4″ × 3/16″ 15/16″ 2″/ 4″
RSGW15-10 2″ × 3/16″ 15/16″ 2″/ 4″
RSGW15-11 2-1/4″ × 3/16″ 15/16″ 2″/ 4″
RSGW15-12 2-1/2″ × 3/16″ 15/16″ 2″/ 4″
A galvanized welded steel grating on the black background.

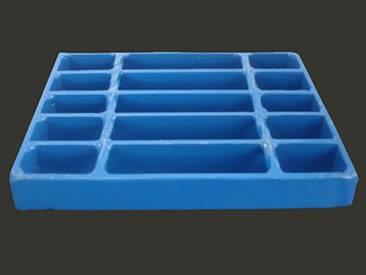

Galvanized welded steel grating.A blue color welded steel grating on the black background.
PVC coated welded steel grating.
Features

Cost-efficient production.
Easy to install.
Resistance welded production for rugged and one-piece constructed structure.
Various application.
Applications

The welded steel grating is widely used in most general industrial plants and commercial buildings.
It can be used as walkways, stair treads and platforms in various places.
Welded steel grating can be used as safety barriers in commercial buildings and other places which have safety requirements.
Welded steel grating can be used as drainage trench grating in municipal engineering and daily usage.
Two workers are installing welded steel grating stair treads.
Welded steel grating can be used as stair treads in parks.A factory with welded steel grating walkways.
Welded steel grating can be used in factories as the walkways.
A welded steel grating is installed on the ground.
Welded steel grating can be used as drainage cover for draining.The wall of factory is made of welded steel grating.
Welded steel grating can be used in various places as security fences.
