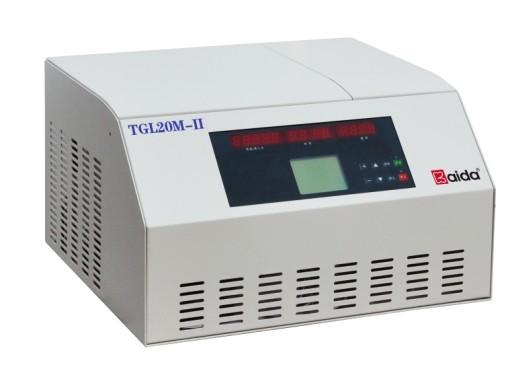

TGL20M-II Table type Universal High speed Refrigerated Centrifuge

FEATURES:

1.
Microprocessor control, operated by touch panel, LED and LCD display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.

2.
Brushless converter motor which has high torque, high speed bearing from European that running smoothly and maintenance-free

3.
Multistage damping system, the Freon-free compressor from [STRIKE]Europe, low noise and slight vibration, green.[/STRIKE]

4.
Steel body, stainless steel centrifugal chamber, imported of key components with high quality, durable and easy to clean

5.
w
[SIZE=3]ith rotor identification system, overspeed, door interlock, unbalance protection function, instrument and rotor lifespan calculation function, the rotor can be disinfected at high temperature & high pressure to ensure safety.[/SIZE]
6.
Pre-cooling design for chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.

7.
Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.

8.
Hold-on and transient centrifuging, easy to diversify centrifuging.

9.
Multifunctional, can centrifuge at both high speed and low speed with large volume swing rotor

Model	TGL[STRIKE]20M-II[/STRIKE]
Maximum RPM	21,000r/min
Maximum RCF	30,700 x g
Maximum Capacity	3000ml
[STRIKE][STRIKE]Temperature [STRIKE]Range[/STRIKE][SIZE=3] [/SIZE][/STRIKE] [/STRIKE]	[LEFT][FONT=Times New Roman][STRIKE]-20°C – +[STRIKE]40°C [/STRIKE][/STRIKE]
[STRIKE][STRIKE]Time [STRIKE]Range[/STRIKE][SIZE=3][/SIZE][/STRIKE] [/STRIKE]	[LEFT][FONT=Times New Roman]0-99h[STRIKE]59m59s [/STRIKE]
Speed Accuracy	±20r/min
Temperature Accuracy	±[STRIKE]1°C[/STRIKE]
Noice	≤60dB
Power supply	AC220V, 50Hz,[STRIKE]18A[/STRIKE]
Dimension	800 x 700 x [STRIKE]400 mm[/STRIKE]
Net Weight	[STRIKE]110 kg[/STRIKE]

[LEFT ALIGN=LEFT] Rotor Type [/LEFT ALIGN]	[CENTER ALIGN=CENTER] Rotor No. [/CENTER ALIGN]	[CENTER ALIGN=CENTER] Capacity (ml) [/CENTER ALIGN]	[CENTER ALIGN=CENTER] Max Speed (r/min) [/CENTER ALIGN]	[CENTER ALIGN=CENTER] Max RCF (xg) [/CENTER ALIGN]	[CENTER ALIGN=CENTER] Dimension of tube (mm) [/CENTER ALIGN]
[LEFT ALIGN=LEFT] Angle rotor [/LEFT ALIGN]	[CENTER ALIGN=CENTER] 6 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 12x 1.5/2.0ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 21000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 30700 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ10×42[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 9 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 24x 1.5/2.0ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 16000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 23200 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ10×42[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 11 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 18×0.5ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 16000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 17800 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ8×32[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 12 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 10x5ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 16000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 17420 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ14×54[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 16 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 12x10ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 15000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 23120 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ16×81[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 18 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 48×0.5ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 13000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 14740 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ8×32[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 22 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 6x50ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 14000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 20150 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ28×105[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 31 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4x100ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 14000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 20000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ38×124[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 52 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 8x50ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 10000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 11100 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ29×106.5[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 53 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 12x30ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 8000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 7600 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ25×93.5[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 54 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 20x10ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 10000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 10150 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ16.5×85.5[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 56 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 32×1.5ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 16000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 20320 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ11×41.5[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 57 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 30x2ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 15000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 24300 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ10.5×42[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 58 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 36x2ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 15000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 22140 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ10.5×42[/FONT][/CENTER ALIGN]
[LEFT ALIGN=LEFT] Swing-out rotor [/LEFT ALIGN]	[CENTER ALIGN=CENTER] 63 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4×50/100ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 5000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4390 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ38×124[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 69 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4x500ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3580 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ80×140[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] Adaptor [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 12x50ml/8x100ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3580 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman] [/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 70 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4x250ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3500 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ64×113[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] Adaptor [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 8x50ml/36x10ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3500 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman] [/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 71 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4x750ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3580 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ99×130[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 77 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 32×10/15ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2810 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ16×85-118[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 81 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 8×50/100ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2810 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ28×105-115[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 82 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 48/40x5ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2800 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Φ14×54[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 84 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 148x7ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3200 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Immuno tube[/FONT][/CENTER ALIGN]
[CENTER ALIGN=CENTER] 84 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 120x7ml [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 3200 [/CENTER ALIGN]	[CENTER ALIGN=CENTER][FONT=Times New Roman]Vacuum blood collection tube[/FONT][/CENTER ALIGN]
[LEFT ALIGN=LEFT] Microplate rotor [/LEFT ALIGN]	[CENTER ALIGN=CENTER] 44 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2×48 holes [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2300 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] Microplate [/CENTER ALIGN]
[CENTER ALIGN=CENTER] 44 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2×96 holes [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 4000 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] 2300 [/CENTER ALIGN]	[CENTER ALIGN=CENTER] Microplate [/CENTER ALIGN]

[CENTER ALIGN=CENTER]
[/CENTER ALIGN]

Remarks:
If you have any question or special requirement about the centrifuge equipments, pls don’t hesitate to contact us. We shall be glad to hear from you at any time. Thanks for all your kind attention and support!
