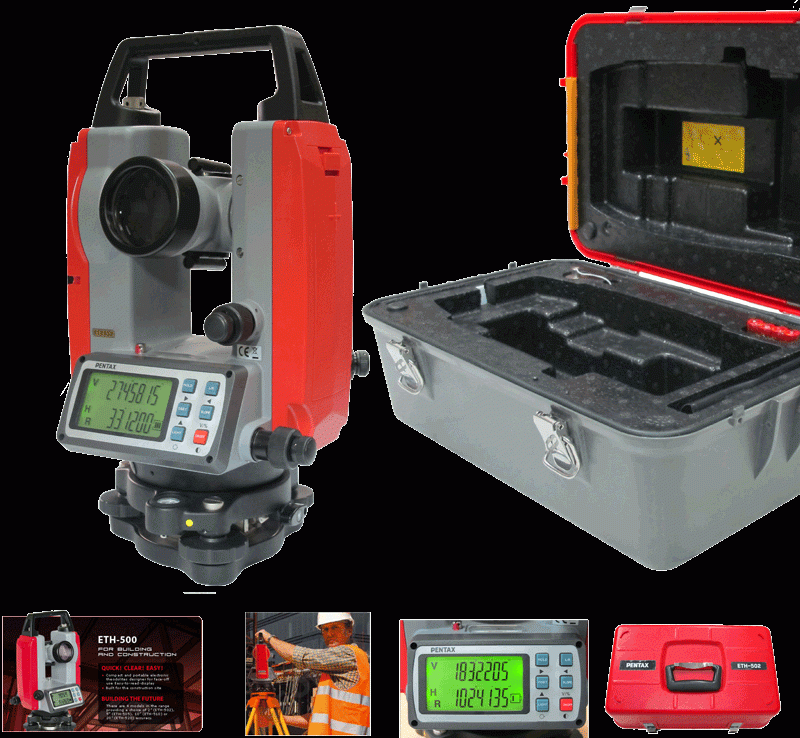

Máy kinh vĩ điện tử Pentax ETH-505

Name: Máy kinh vĩ điện tử Pentax ETH-505
SKU: 20120531160419-may-kinh-vi-dien-tu-pentax-eth-505
Availability: InStock

29.000.000 ₫

Mã sản phẩm: 20120531160419-may-kinh-vi-dien-tu-pentax-eth-505 Danh mục: Máy móc - Thiết bị, Máy móc thiết bị công nghiệp

[HIGHLIGHT=#ffffff][COLOR=#000000][FONT=Trebuchet MS, arial, sans-serif]Máy kinh vĩ Pentax ETH-505

[/HIGHLIGHT][/FONT][/COLOR][HIGHLIGHT=#ffffff] [/HIGHLIGHT][HIGHLIGHT=#ffffff] [/HIGHLIGHT][HIGHLIGHT=#ffffff] [/HIGHLIGHT][HIGHLIGHT=#ffffff] [/HIGHLIGHT][HIGHLIGHT=#ffffff][FONT=Arial, Tahoma][COLOR=#4d4d4d]Máy Kinh Vĩ Điện tử PENTAX ETH – 500Series

Giá: li[COLOR=#4d4d4d][FONT=Arial, Tahoma]ên hệ[/COLOR][/FONT] Hàng 100% chính hãng PentaxBảo hành 12 tháng

Electronic Theodolites ETH-500	Series Specification
Model		ETH-502	ETH-505	ETH-510	ETH-520
Telescope	Imaging		Erect image
	Objective aperture		45 mm
	Magnification		30 x
	Resolution		≤ 3”
	Field of view		1° 20’
	Shortest focusing distance		1.35 m
	Stadia multiplication constant		100
	Stadia addition constant		0
Angle Measuring	Angle measuring mode		Absolute encoder
	Angle measuring accuracy	2″	5″	10″	20″
	Angle display	1″/5″	1″/5″	5″/10″	10″/20″
	Angle unit		360°/400G
Compensator	Tilt sensor		Automatic vertical compensation
	Tilt compensator	Yes	Yes	No	No
	Soft switch	ON/OFF	ON/OFF	– –	– –
	Compensation range		± 3’
Display unit	Two-sided		Two-sided
Optical plummet Image	Erect		Erect
	Magnification		3 x
	Angle of vision		3°
	Focusing range		0.5 m ~ ∞
	Sensitivity of tubular vial mm	30”/2	30”/2	40”/2 mm	40”/2 mm
	Sensitivity of circular vial		8’/2 mm
Dust & Water Protection			IP44
Type of base			Detachable
Power supply	Battery		4 x single three (AAA) type dry battery
Ambient temperature	For operation		-20°C – +50°C
Weight	Instrument		4.5 kg
Measurements	Carrying case		1.9 kg
	Instrument		W 175 mm x L 170 mm x H 334 mm
	Carrying case		W 330 mm x L 450 mm x H 220 mm
