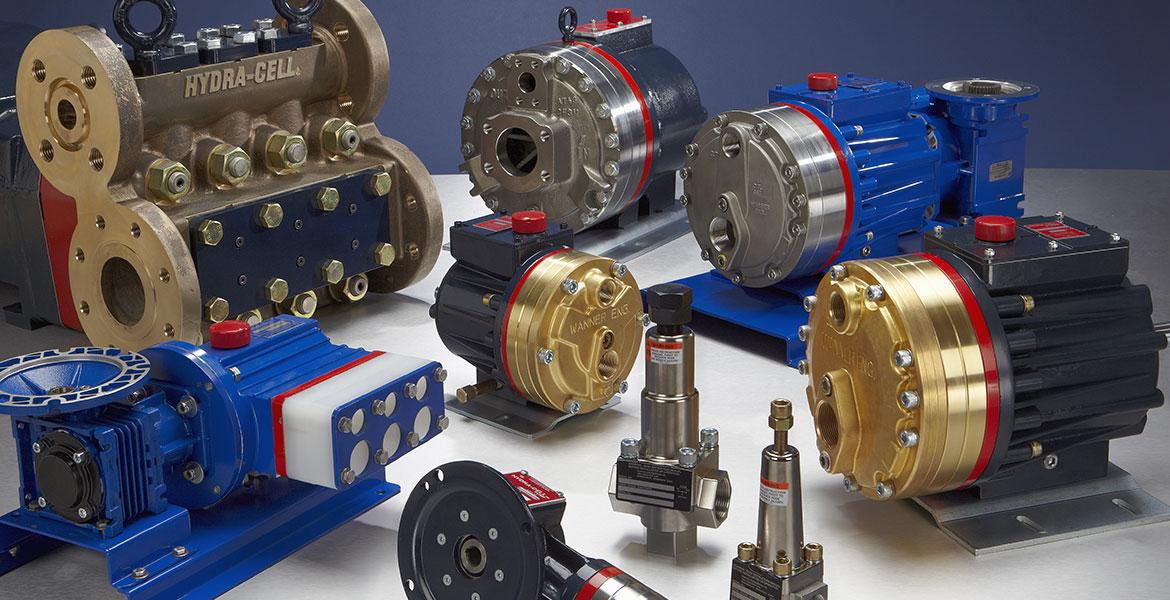

The Hydra-Cell® Pump…
“Simply Built to Last!”

Hydra-Cell Design Advantages
• Positive displacement with smooth, low pulse output
• Heavy-duty industrial construction for long service life in harsh
conditions
• Hydraulically-balanced, unstressed diaphragms
• Wide range of flow rates from 0.4 to 128 l/min and pressures up to 172 bar
• Repeatable, accurate output – ideal for metering and dosing
• Sealless design – can pump particles in suspension
• Flexible installation with a variety of mounting configurations
• Minimal maintenance; no cups, packings or seals – can even run dry!
• Wide choice of materials of construction for pump heads, diaphragms and valve assemblies
• High efficiency – low power consumption

Roller bearings – rigid support, immersed in lubricating oil bath.
Fixed-angle cam – translates rotary motion into linear to the hydraulic cells.
Hydraulic cells – displace diaphragms via pressurised oil.
Diaphragms – hydraulically balanced, no stress during flexing.
Inlet valve assemblies – simple design, allows liquid into pump chamber.
Outlet valve assemblies – allows liquid to flow into pressure discharge line.
Pressure regulating valve – controls output pressure and prevents pump overload.
